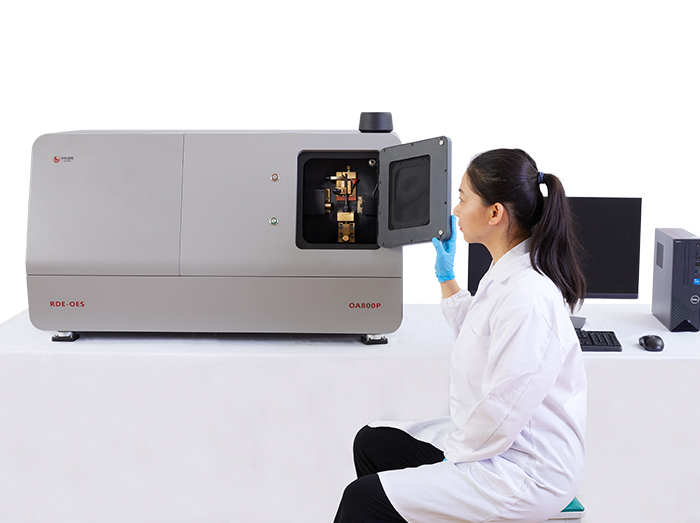

Precise Oil Analysis Spectrometer OA800P, accurately analyzing various working fluids (such as lubricating oil, hydraulic oil, fuel, coolant, and process water) for wear metals, additives, and contaminants. It's widely ued in industries like railways, aviation, and commercial oil lab. With its advanced CMOS detector, it ensures incredibly low detection limits, meeting the toughest analytical needs.
Precise Oil Analysis Spectrometer OA800P, accurately analyzing various working fluids (such as lubricating oil, hydraulic oil, fuel, coolant, and process water) for wear metals, additives, and contaminants. It's widely ued in industries like railways, aviation, and commercial oil lab. With its advanced CMOS detector, it ensures incredibly low detection limits, meeting the toughest analytical needs.
Working Principle
ASTM Standards
Conforms to ASTM D6595 - "Standard Test Method for Determination of Wear Metals and Contaminants in Used Lubricating Oils or Used Hydraulic Fluids by Rotating Disc Electrode Atomic Emission Spectrometry"
Conforms to ASTM D6728 - "Standard Test Method for Determination of Contaminants in Gas Turbine and Diesel Engine Fuel by Rotating Disc Electrode Atomic Emission Spectrometry”
Simultaneously analyze wear metals, contaminants, and additives in oil sample
Analyzes up to 24 elements simultaneously, flexible channel addition without hardware changes
Constant temperature control
CMOS optical sensing
Built-in working curve
Linear and pixel calibration supported
No sample preparation
40 seconds analysis time, adjustable
Low cost per sample
Using fiber optic coupling to ensure instrument resolution
Optical chamber: sealed heat exchanger blocks dust, mist, oil
Equipped with exhaust structure, prevents cross contamination
No argon gas or cooling water required
Integrated enclosed frame structure, impact-resistant, deformation-resistant
Multi-panel design, internally partitioned logically
Simple to operate without special training or background
| No | Element | Symbol | Range (ppm) |
| 1 | Aluminum | Al | 0-1000 |
| 2 | Barium | Ba | 0-6000 |
| 3 | Boron | B | 0-1000 |
| 4 | Cadmium | Cd | 0-1000 |
| 5 | Calcium | Ca | 0-6000 |
| 6 | Chromium | Cr | 0-1000 |
| 7 | Copper | Cu | 0-1000 |
| 8 | Iron | Fe | 0-1000 |
| 9 | Lead | Pb | 0-1000 |
| 10 | Magnesium | Mg | 0-6000 |
| 11 | Manganese | Mn | 0-1000 |
| 12 | Molybdenum | Mo | 0-1000 |
| 13 | Nickel | Ni | 0-1000 |
| 14 | Phosphorus | P | 0-1000 |
| 15 | Silicon | Si | 0-1000 |
| 16 | Silver | Ag | 0-1000 |
| 17 | Sodium | Na | 0-6000 |
| 18 | Tin | Sn | 0-1000 |
| 19 | Titanium | Ti | 0-1000 |
| 20 | Vanadium | V | 0-1000 |
| 21 | Zinc | Zn | 0-6000 |
| 22 | Potassium | K | 0-1000 |
| 23 | Lithium | Li | 0-1000 |
| 24 | Antimony | Sb | 0-1000 |
Optical System
Optical system: Pashen-Runge, Roland circle optical structure, Roland focal length: 700mm
High-performance holographic diffraction grating, Grating notching 2400L/mm
Optical resolution: 0.006nm
Spectral range: 190-800nm
Double chamber system:Short wave chamber wavelength: 190～470nm; Long wave chamber wavelength: 470～800nm
Both Roland circle and the host machine are equipped with a constant temperature system to maintain constant temperature independently, 40±1°C; the constant temperature is adjustable, which is effectively suitable for too high or too low environment temperature condition
Detector
Cluster optical fiber signal transmission dual-layer, multi-CMOS detection spectrum system
The linear array of multiple CMOS is arranged in a Roland circular shape, which realizes continuous and simultaneous detection of the whole band, and facilitates later development of other elements
High performance CMOS detectors have significantly enhanced the quantum efficiency and sensitivity
Ultraviolet band spectral enhancement detection technology, enhances the ultraviolet band light intensity, and prolongs the life
Excitation Light Source
Bidirectional high performance excitation light source, 14000V ignition pulse, digital discharge parameter setting, digital pulse generator, digital offline pulse control
Dual-phase zero-crossing signal detection technology, avoiding high-voltage spark electromagnetic compatibility interference, and improving voltage stability

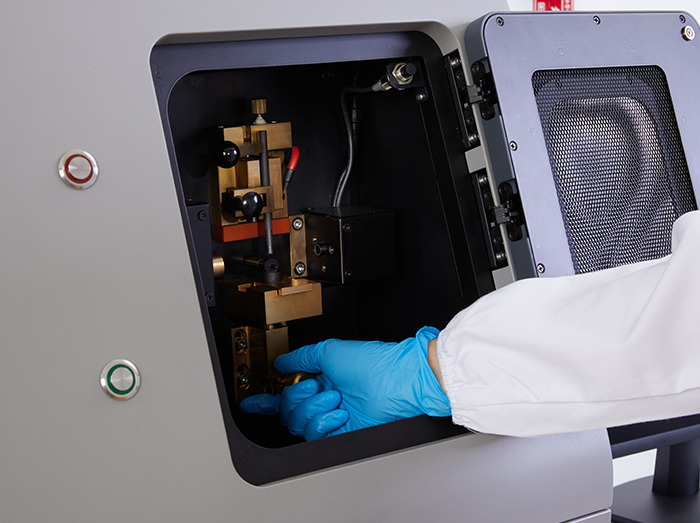

Excitation Chamber
Rod electrode holder for automatic adjustment of electrode pole distance device, ensure that the height of electrode spacing is consistent for all measurements
The excitation room has a visual window, which can visualize the whole excitation process
Complete safety monitoring and protection functions, including excitation chamber door safety lock, sample cup, disc electrode, rod electrode, spark gap sensing monitoring device (laser light source automatic positioning), with safety alarm and automatic flameout function
Semi-permeable cutoff to prevent oil sputtering contamination and filter stray light
Aluminum fire extinguishing device, to prevent volatile sample ablation to produce flames
Graphite Disc Electrode(500pcs/box)
Graphite Rod Electrode(50pcs/box)
Sample Cup(1000pcs/pack)
